CB1000 Series Control Board

General Description This Control board is based on an 80C31 microprocessor with a complement of other CMOS chips. It provides for both parallel and serial digital input, a battery-backed clock/calendar, and interfaces for a keypad and a paper take-up reel, For analog inputs and other special applications, daughter board can be attached with full access to the microprocessor data bus.

Download CB1000 Series Datasheet in Adobe pdf.

Download free Adobe Acrobat reader here.

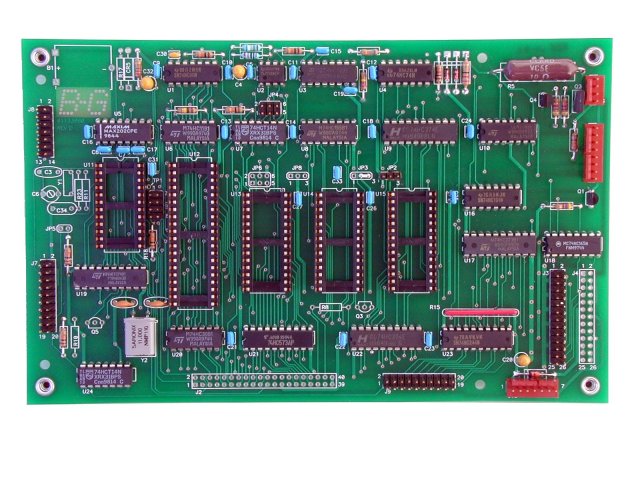

CB1224, CB1320 and CB1416: derive from the 1000 series control board seen here. The raw dimensions are (5" x 8" x .75") These control boards drive the PM1224, PM1320 and PM1416 Print Mechanisms. Click here to enlarge photo
