CB3000 Series Control Board

GENERAL DESCRIPTION
This contol board provides 12-bit analog-to-digital conversion of up to 8 analog voltage inputs, at print speeds from 5 mm/sec to 45 mm/sec, a keypad interface, a number of other I/O lines, a paper takeup reel driver. This board is primarily intended for applications that require its analog input capability. (See CB3000 Cabling Diagram) The CB3000 also accepts input data from a parallel or serial RS232 data interface and provides the logic and drive functions to operate several B-G Instruments' print mechanisms, including model numbers PM1832, PM1448. This board is based on a silicon labs C8051 microprocessor with a complement of other IC's. Applications that only require digital input can use the CB2832, CB2448 control boards.

Download CB3000 Series Datasheet in Adobe pdf.

Download free Adobe Acrobat reader here.

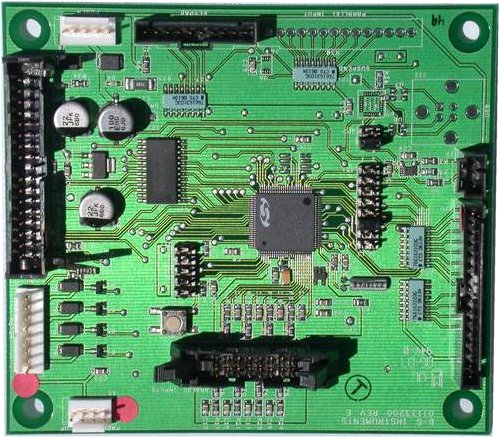

CB3000: The raw dimensions are (4.5" x 4" x .75") This control board drives the PM1832, PM1448 Print Mechanisms.
