PM1416 Series Print Mechanism

GENERAL DESCRIPTION The DataPlot model PM 1416 Print Mechanism incorporates a thermal printhead with 416 heat element dots arrayed in a single line across the width of the paper. The mechanism holds a supply roll of 4.5" wide thermal paper and moves the paper past the printhead in steps of approximately .005 inch. When driven by a DataPlot CB 1416 or CB 1100 Control Board, the print mechanism steps the paper forward, pausing after each step to heat selected dots. In this manner, a dot matrix representation of alphanumeric and/or graphic data can be printed.

Download PM1416 Series Datasheet in Adobe pdf.

Download free Adobe Acrobat reader here.

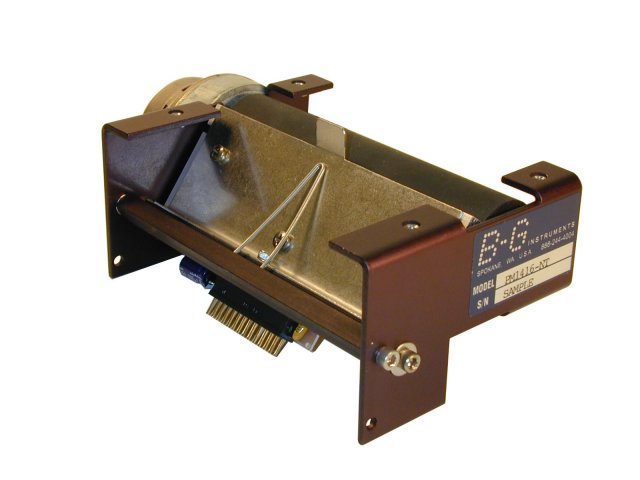

PM1416-NT: Print mechanism without a paper tray attached. Designed for customers who do not require an integrated paper holding device. Most customers of this mechanism design their own paper holder or have B-G design one specific to their application.



Click here to enlarge photo

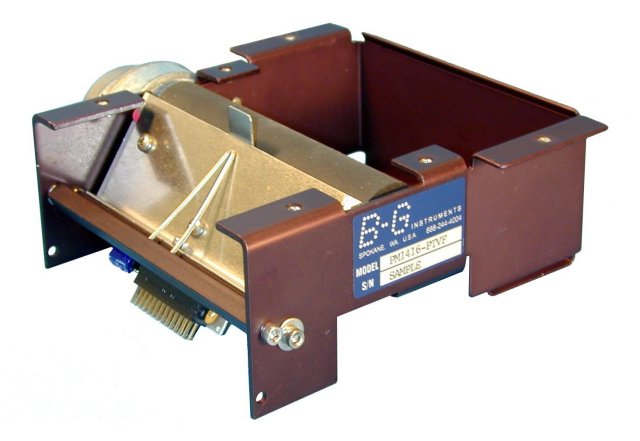

PM1416-PTVF: Print Mechanism with paper access from the front (if mounted vertically) or from the top (if mounted horizontally.) Provides PEM inserts on tabs, over the tray, for convenient mounting of an access door to match customer's front panel.



Click here to enlarge photo

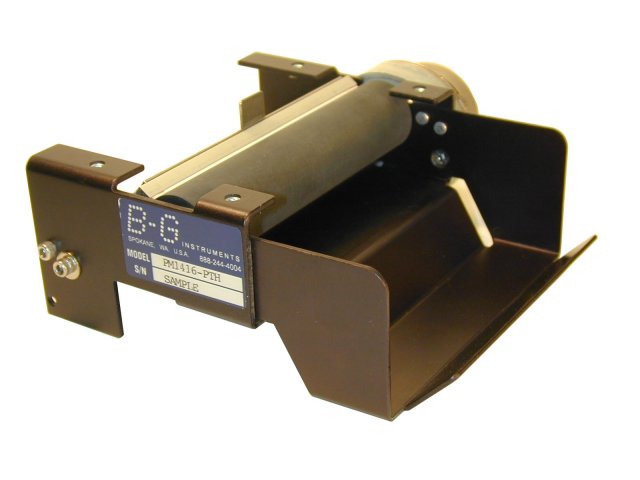

PM1416-PTH: Print mechanism with paper access from the back. Designed to be mounted horizontally with the paper tray exposed at the back of an instrument This is the typical "calculator" type mounting.



Click here to enlarge photo

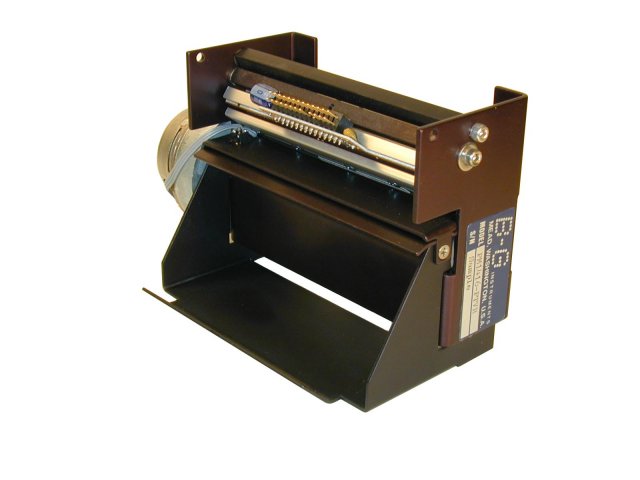

PM1416-PTVR: Print mechanism with paper access from the rear. Designed to be mounted vertically to a hinged panel where access to paper loading is not easily accessible to the end user.



Click here to enlarge photo

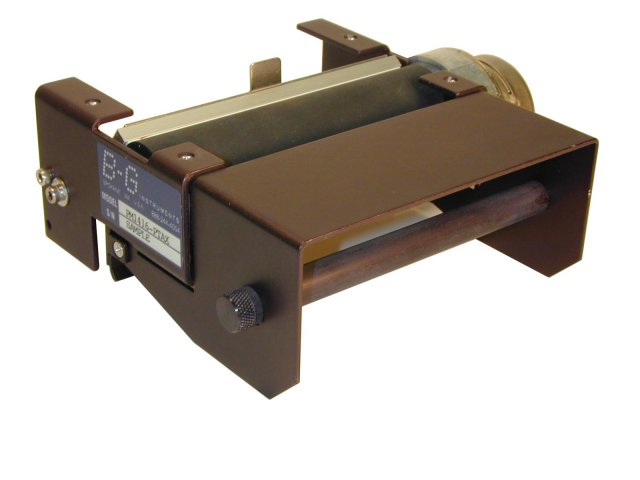

PM1416-PTAX: Print mechanism with paper access in various orientations. The paper roll is held in a fixed position by an axle through the paper core allowing the mechanism to be oriented at various angles. Thus, in a vertical front panel application, the paper roll can be mounted above the print head or at any other angle. Click here to enlarge photo
